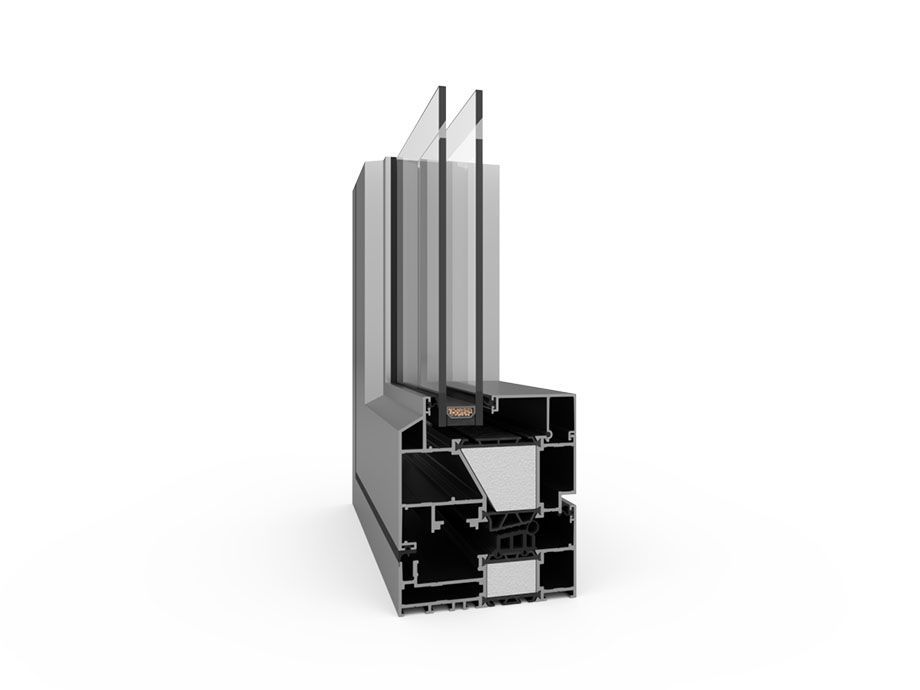

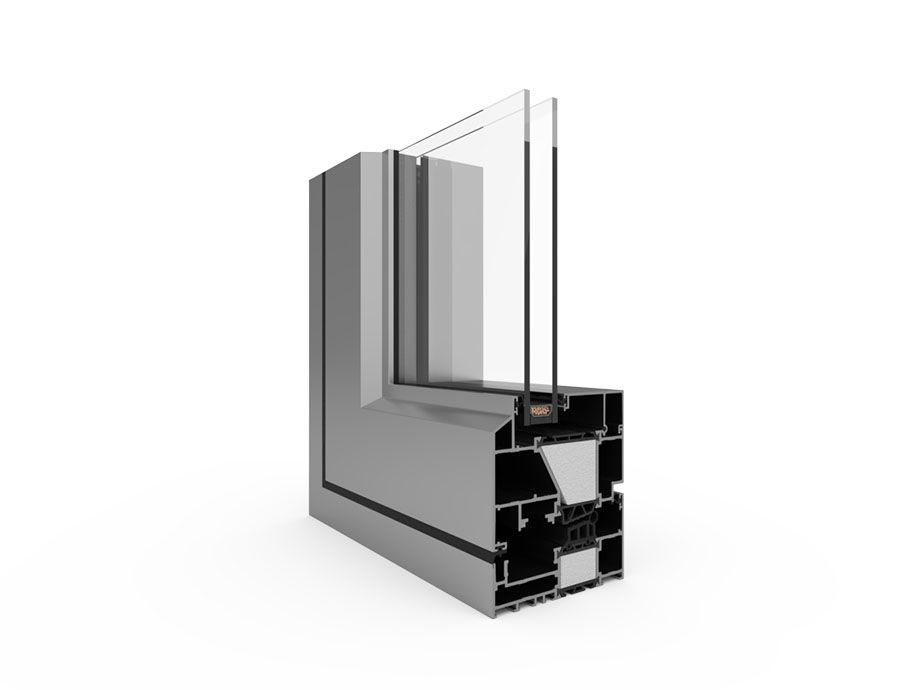

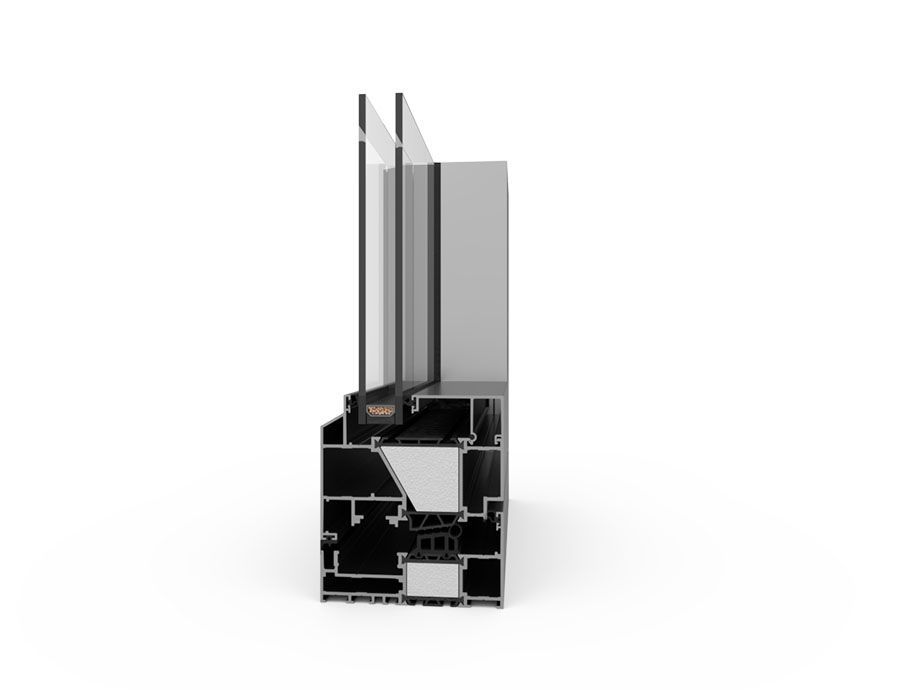

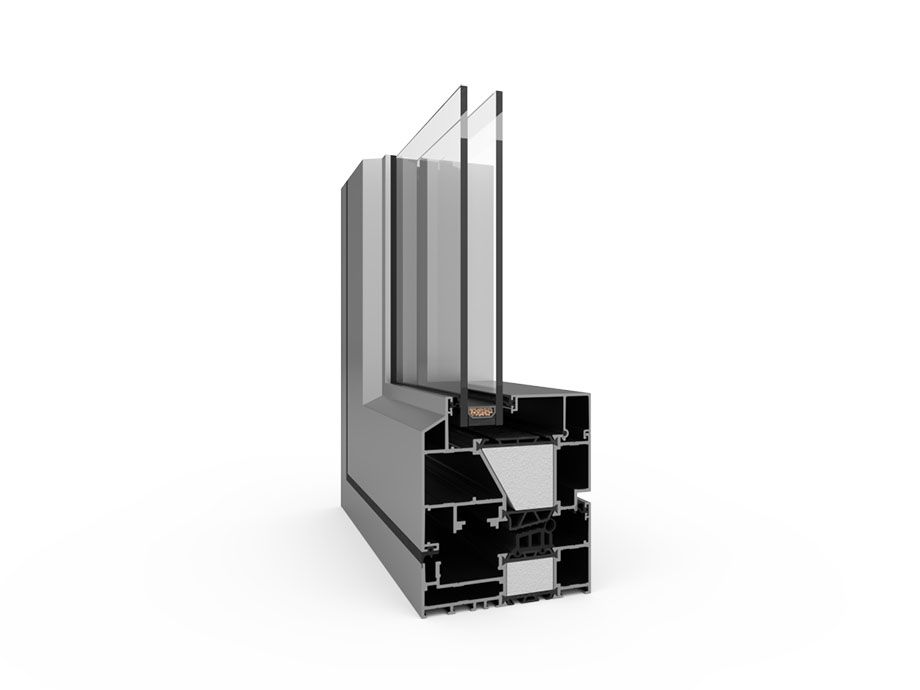

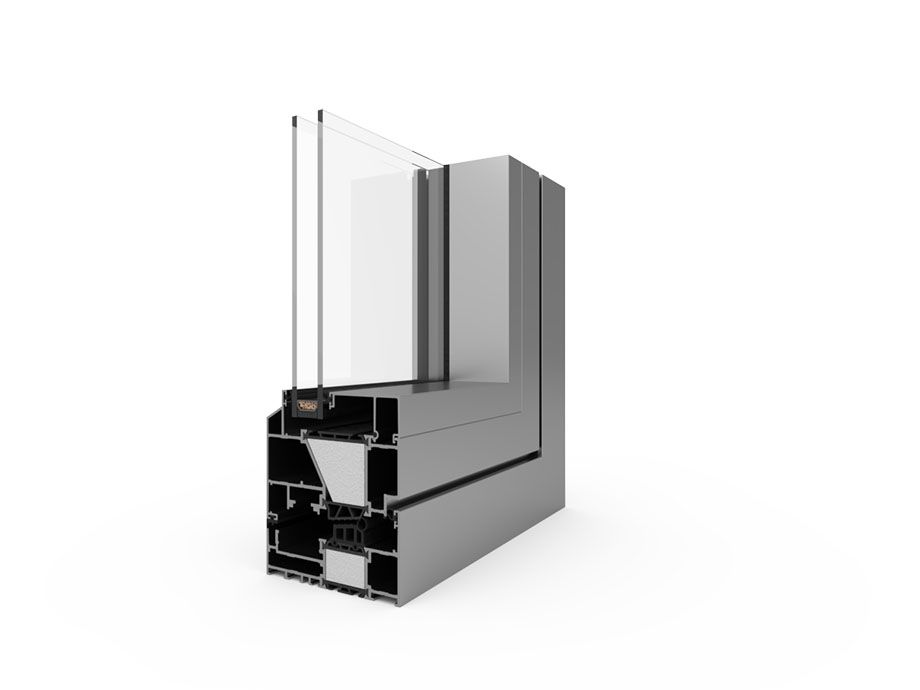

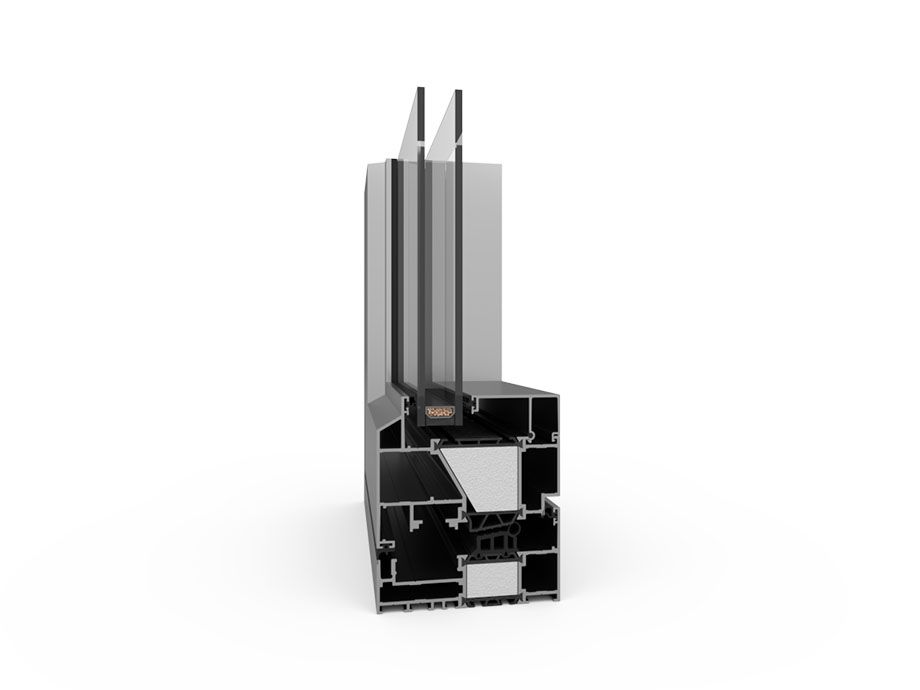

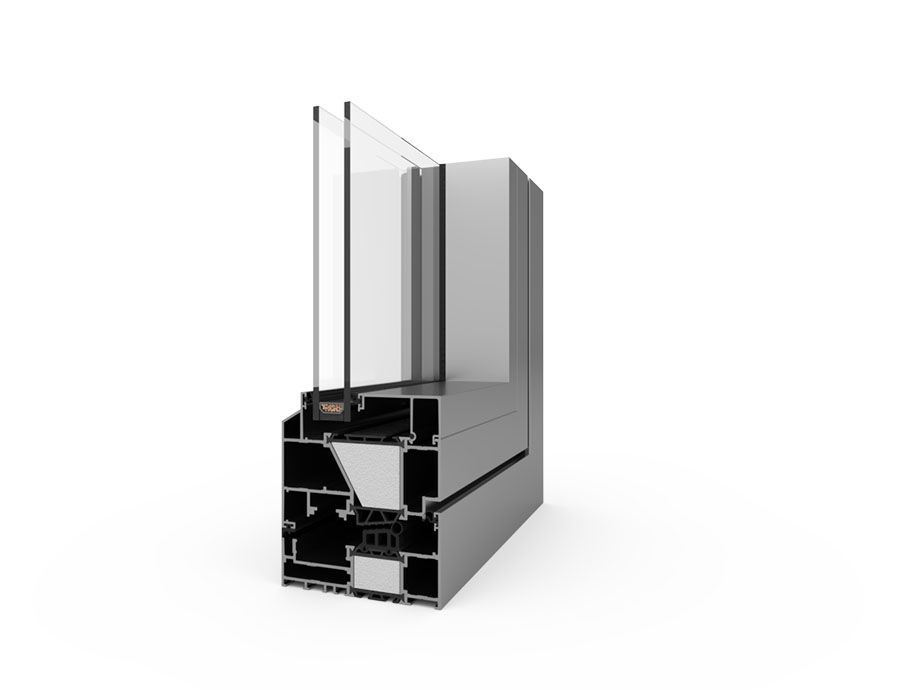

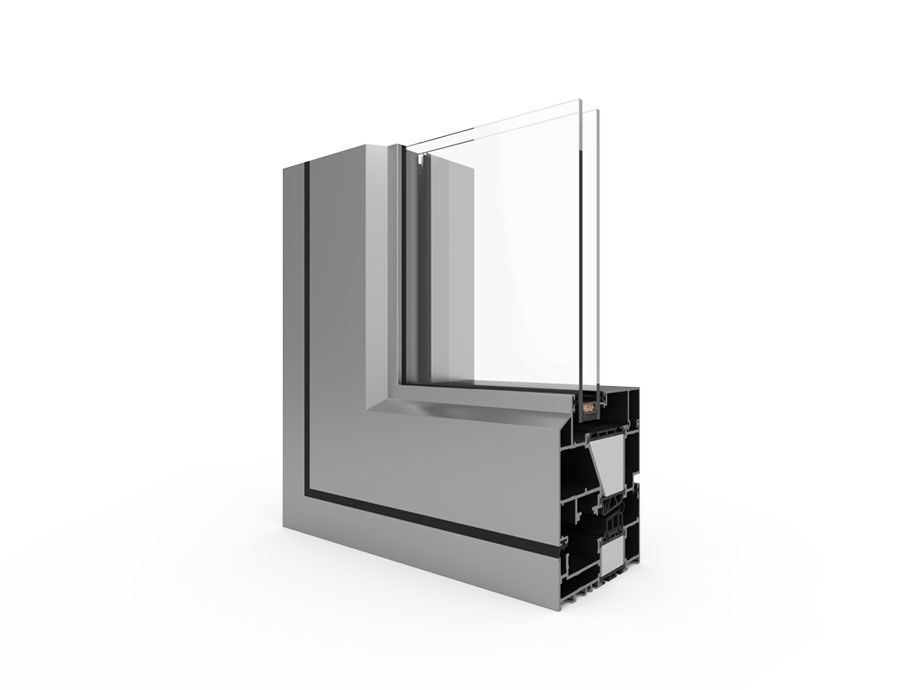

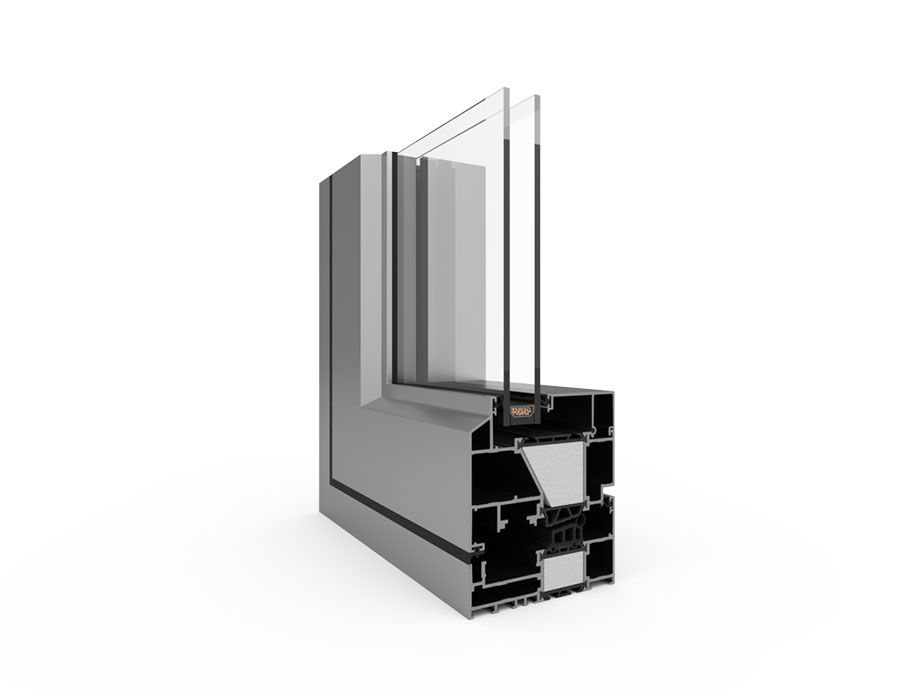

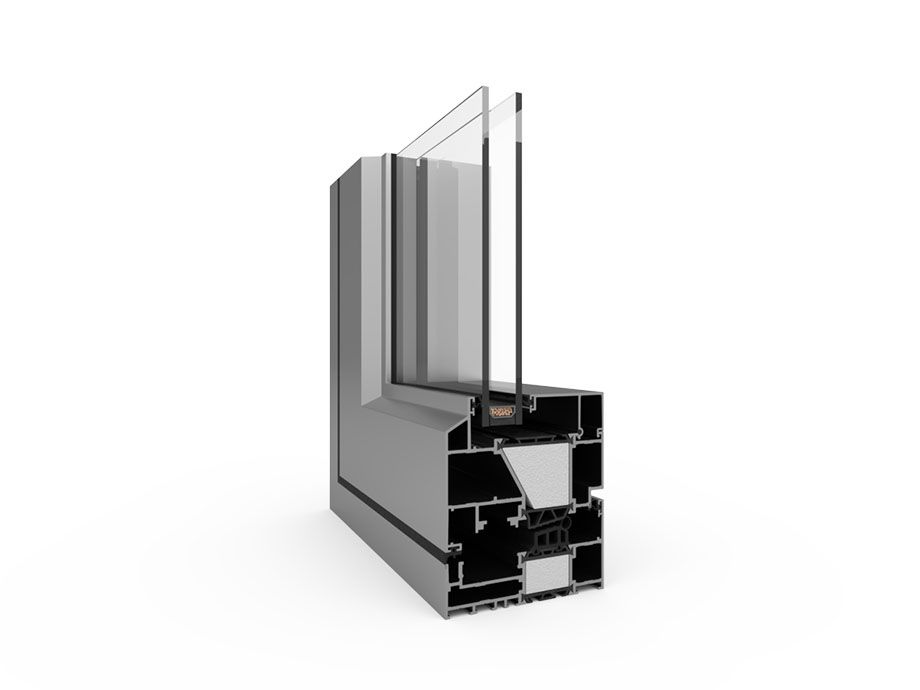

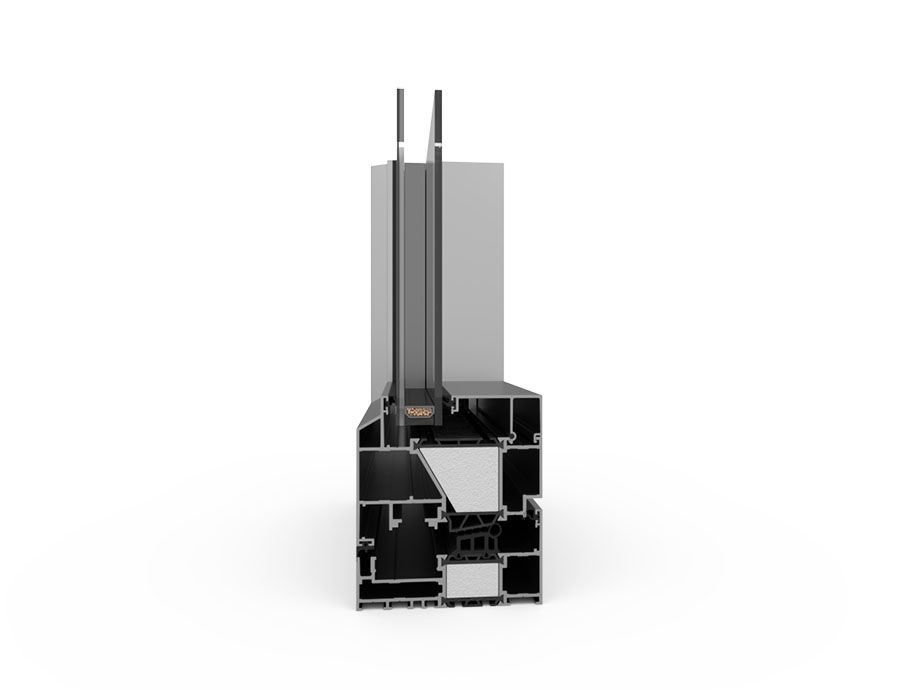

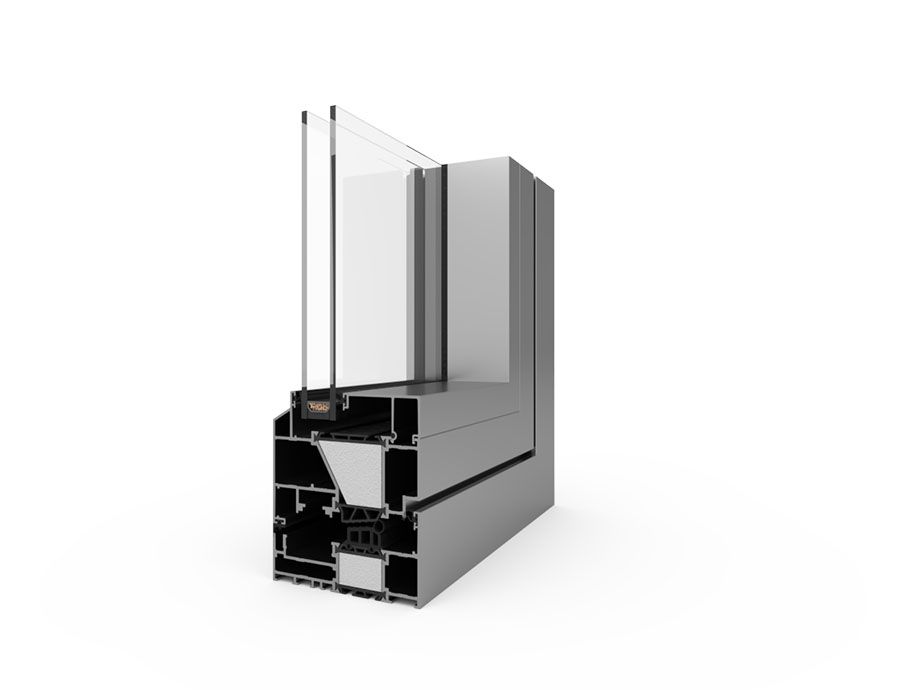

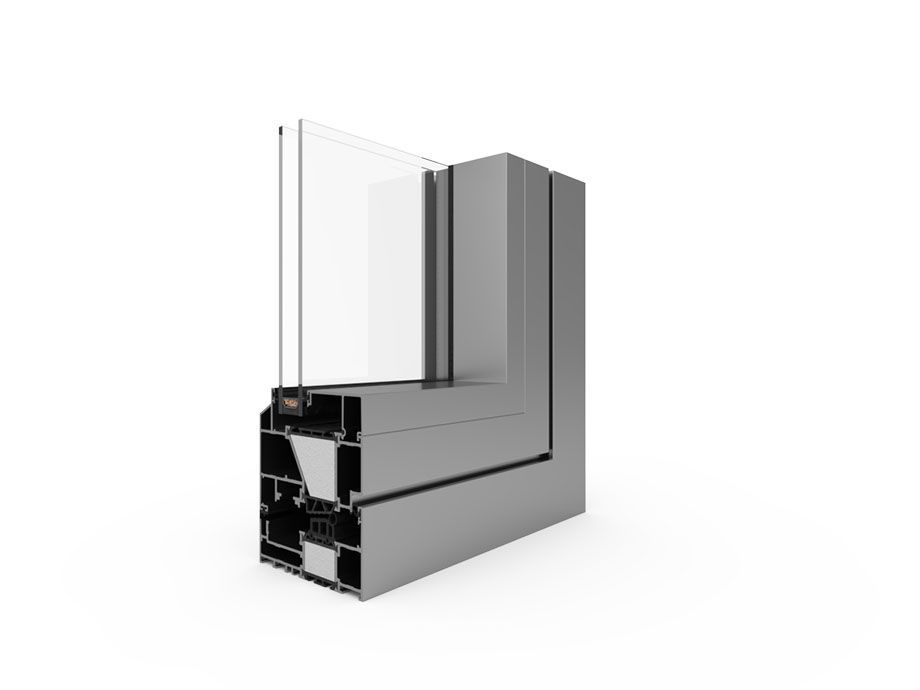

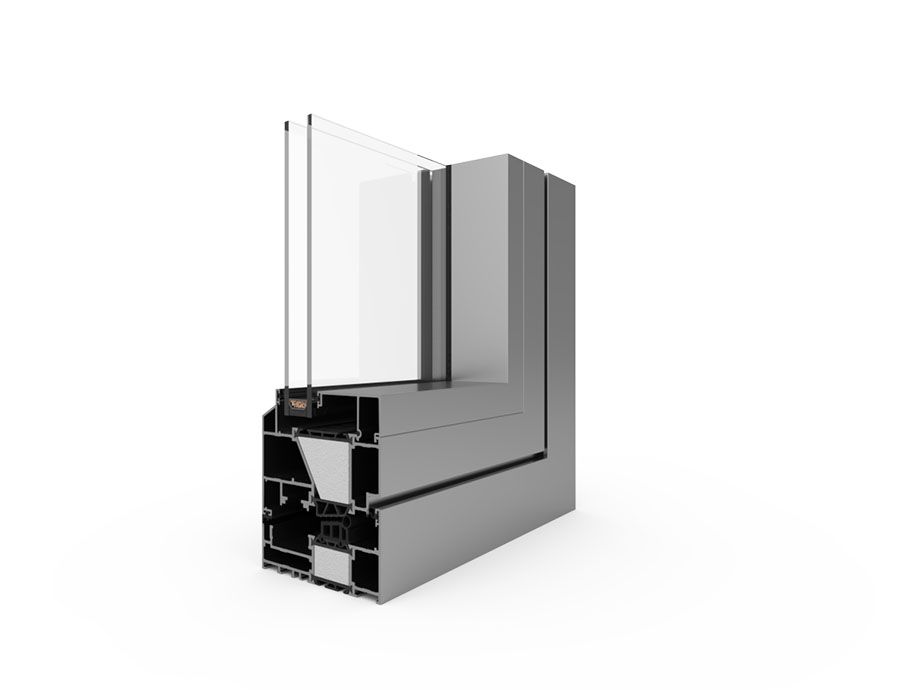

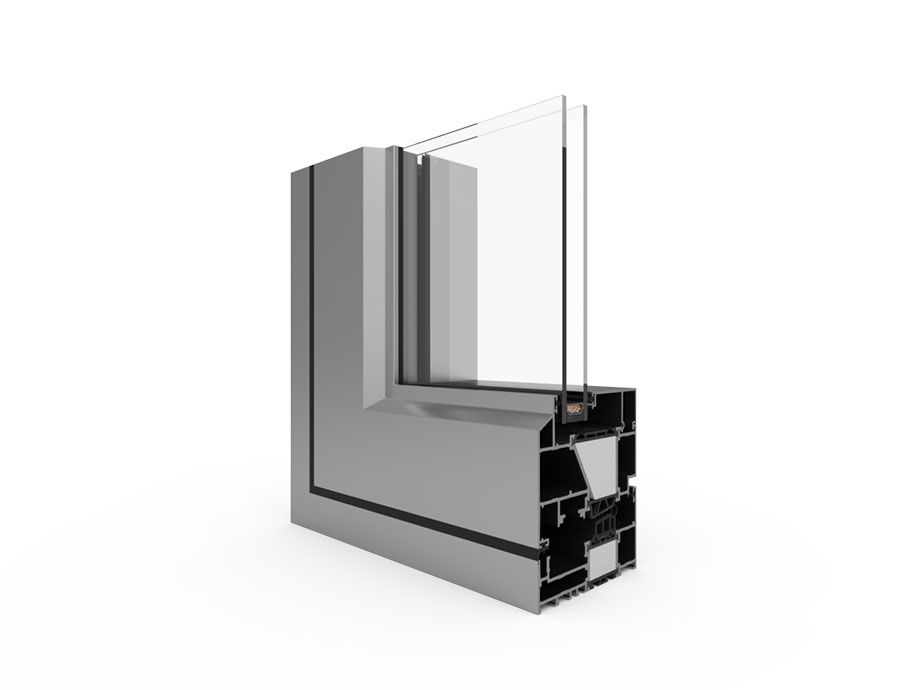

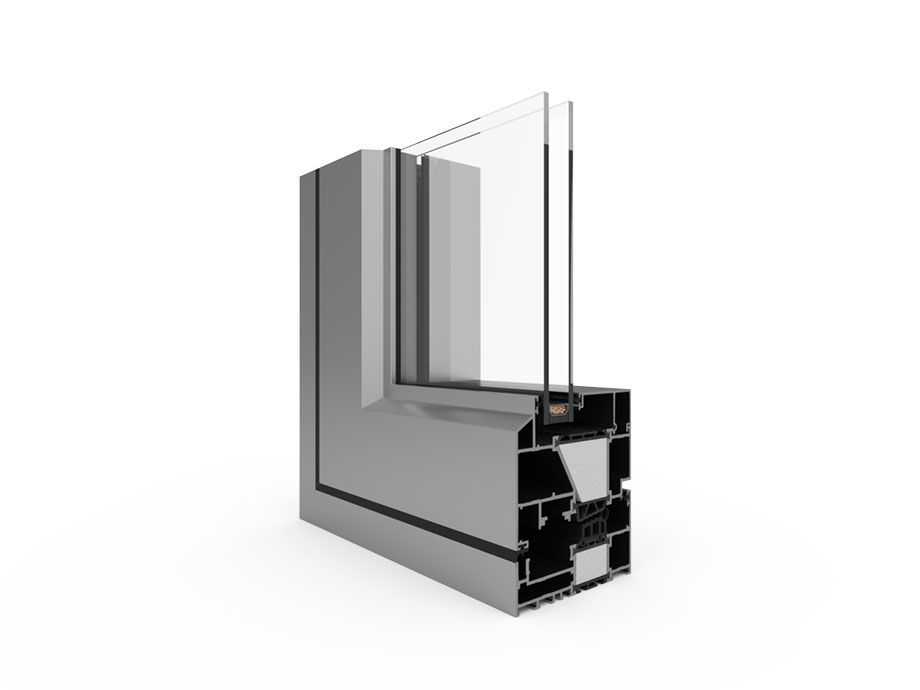

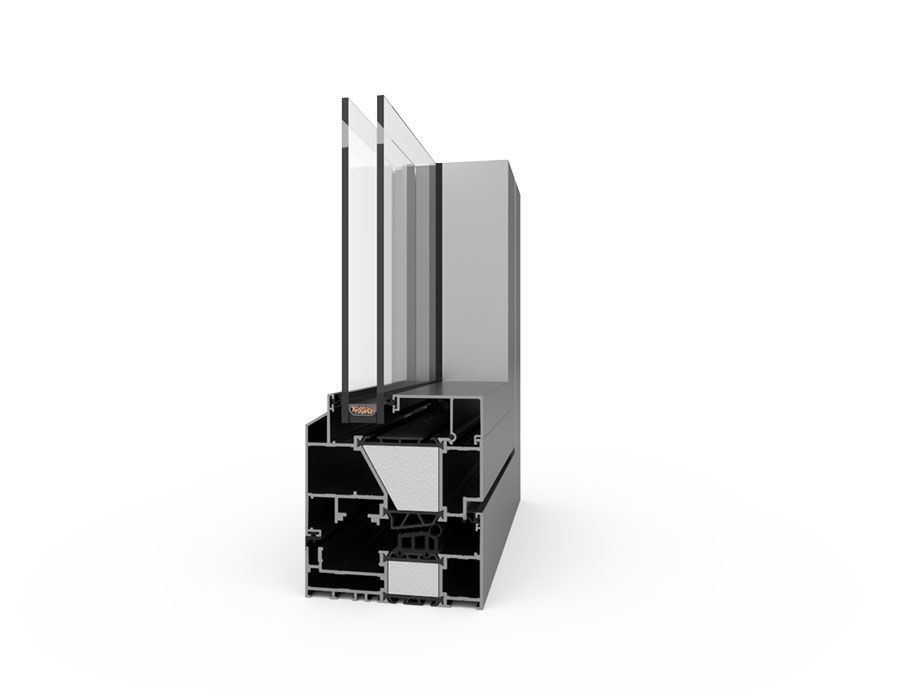

ALUMINIUM PIVOT WINDOW SCAND
- Installation depth 101 mm.
- Maximum glazing thickness: 62 mm.
- Maximum sash weight 80 kg.
- Can be rotated 180 degrees.
- Scissor fittings.
- RAL K7 colour palette.
Uw 0.85
Uw for Ug = 0.5
3
Gaskets
3
Chambers
The special design of the fitting scissors allows the window to be rotated 180 degrees, providing comfortable access to the outside of the window. This is very convenient, especially when maintaining windows and washing external glass. Until now, only PVC and wood products were available with similar functionality.
WINDOW HANDLES
Standard Window Handle
Classic Window Handle
MoonLine Window Handle
GLASS OPTIONS
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
AVAILABLE COLORS
Colour options
Available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
